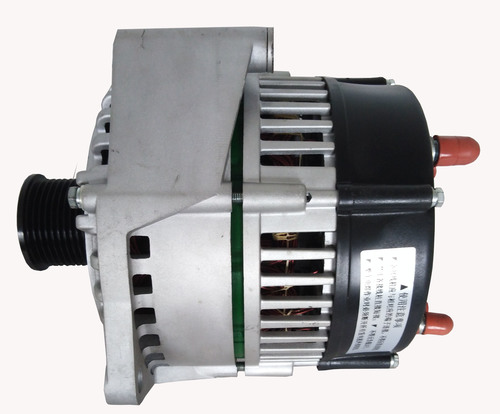

28V 110A Vehicle Alternator

28V 110A Vehicle Alternator
28V 110A Vehicle Alternator
Send Inquiry
Product Code : 28V 110A
Product Description

With an aim to be a pioneer in our domain, we are indulged in manufacturing and supplying Vehicle Alternator. It is mainly used for maintaining a charge in the vehicle�s battery, and for providing the main source of electrical energy while the engine is running. This is manufactured at our advanced workstations by usage of supreme quality raw materials and new advanced technologies. This alternator is thus used in modern automobiles for performing essential operations, while the engine is running. Further, Vehicle Alternator is also highly appreciated for providing useful charge at idle speed.


Technical specification

  • Rotation: clockwise (viewed from the driving end)
  • Working temperature: -40 ℃~85℃
  • Rated rotation speed: 6000rpm,
  • Max. working rotation speed: 8000rpm
  • Rectifier structurer: 9 tubes
  • Groove of pulley: 6
Unloaded speed:
  • N≤1300rpm
  • N=3000rpm,
  • I=90a, u≥27v
Voltage adjusting valve:
  • N=6000rpm, t=25℃,
  • I=3a,
  • U=28±0.5v,
  • Temperature compensation ratio: -4mv~-10mv/℃.
