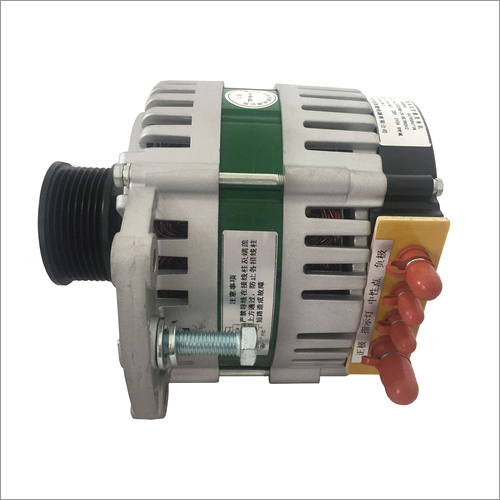

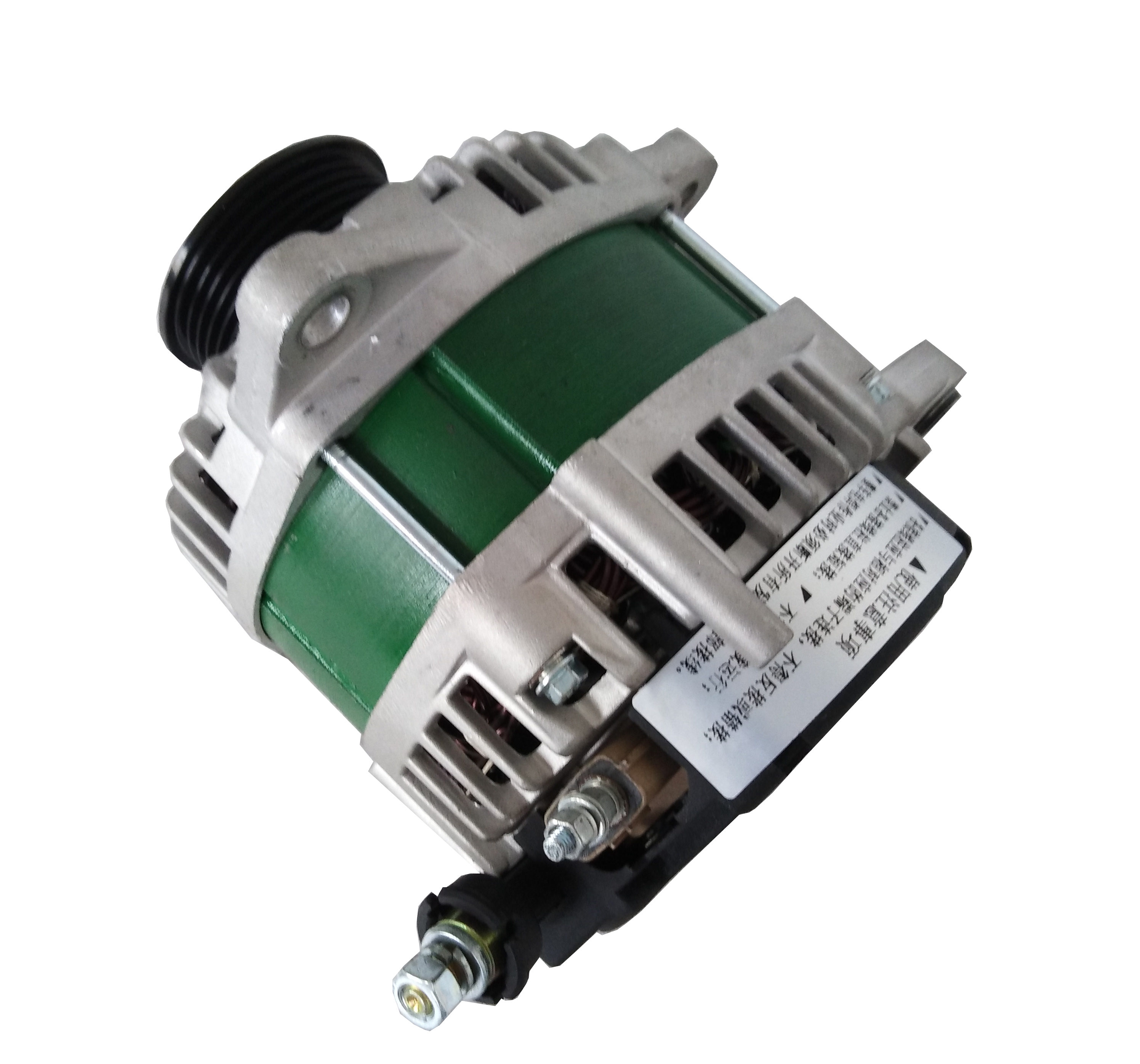

56V 90A Heavy Duty Vehicle Alternator

Product Description

With a great reputation in market, we are indulged in manufacturing and supplying Heavy Duty Vehicle Alternator. It is widely utilized in modern automobiles for charging a battery and to power electrical system, while the engine is running. This one also uses slip rings which ensure greatly extended brush life over a commutate. Moreover, it is preferred more than its peers for its lightweight, rugged construction, and for providing useful charge at idle speed. Further, Heavy Duty Vehicle Alternator uses the principle of electromagnetism and is also capable of protecting circuits in the automobile from excessive voltage.

Technical specification

• rotation: clockwise (viewed from the driving end)
• working temperature: -40 ℃～105℃
• rated rotation speed: 6000rpm,
• Temperature compensation ratio: -4mV～-10mV/℃.
• Max. working rotation speed: 10000rpm
• Rectifier structure: 9 tubes

• n≤1800rpm
• n=3000rpm,
• I=62A,
• U≥54V

• n=6000rpm,
• T=25℃,
• I=3A,
• U=56±0.7V,
