Product Code : 8430313000
Brand Name : SHIMEI
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price Range
  • 720000.00 - 857200.00 USD ($)
Product Specifications
  • Condition
  • new
  • Product Type
  • EBZ200T
  • Voltage
  • 660/1140V
  • Weight (kg)
  • 58000
  • Color
  • yellow
Product Description

Product Description

Cylinders

Becuse working circumstance of the roadheader is very tough, so the cylinder's quality will affact the working of the machine greatly. We select the top quality cylinders.

Report from the user


Model

EBZ200

Weight

t

58

Overall dimension

mm

10620*2690*1830

Total power

321kW

286

Power station

kW

110

Cutting power

kW

200/110

Cutter speed

rpm

46/23

Boom telesopic length

mm

650

Width of apron

mm

3600

Max. cutting height

mm

5270

Max. cutting width

mm

6630

Applicable hardness

MPa

80

Travelling speed

m/min

0-7.5

Width of track shoes

mm

650

Groud pressure

MPa

0.135

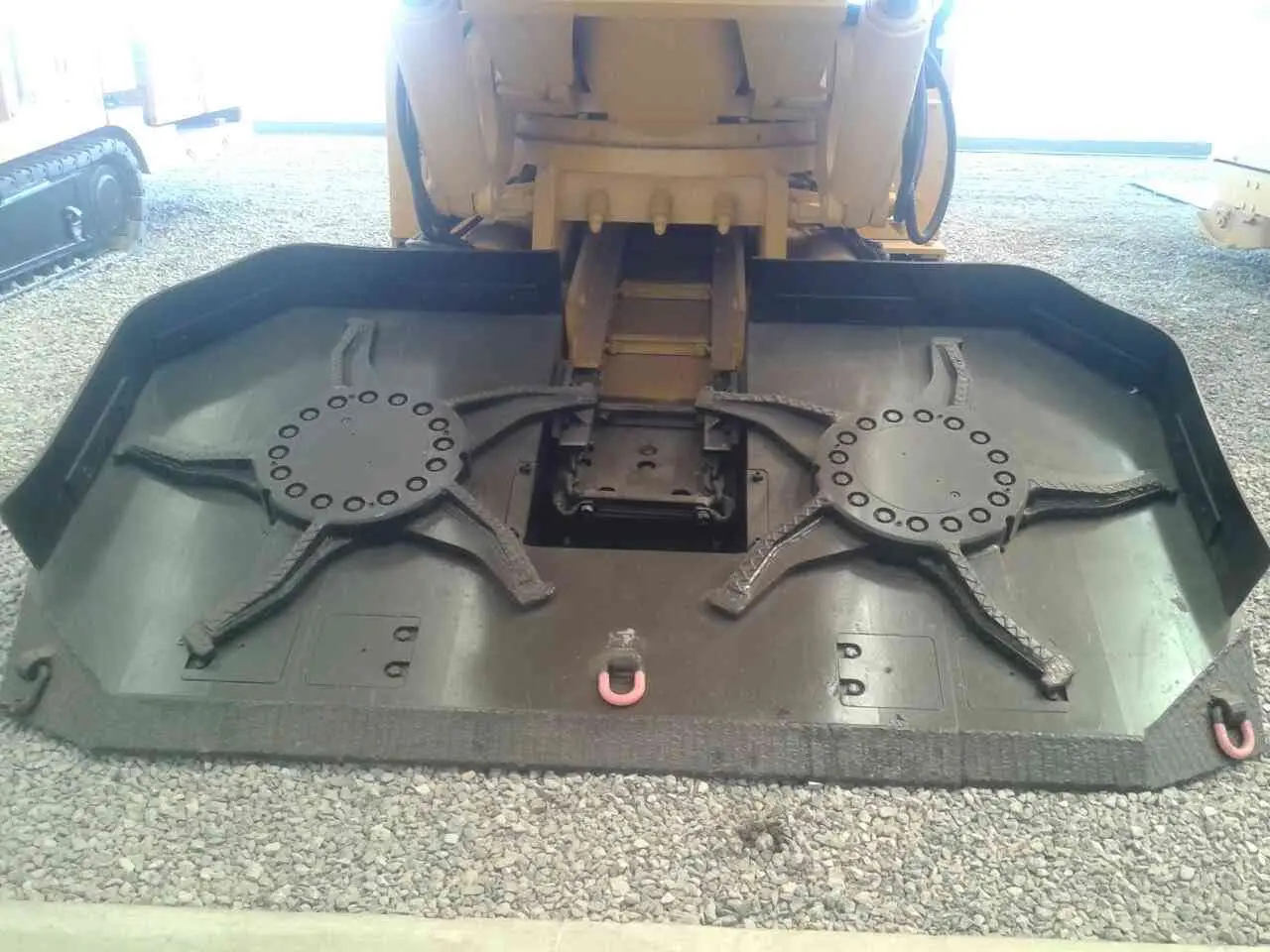

Loading type

Independent star wheel

Voltage

V

660/1140

Applied tunnel gradient

°

±18

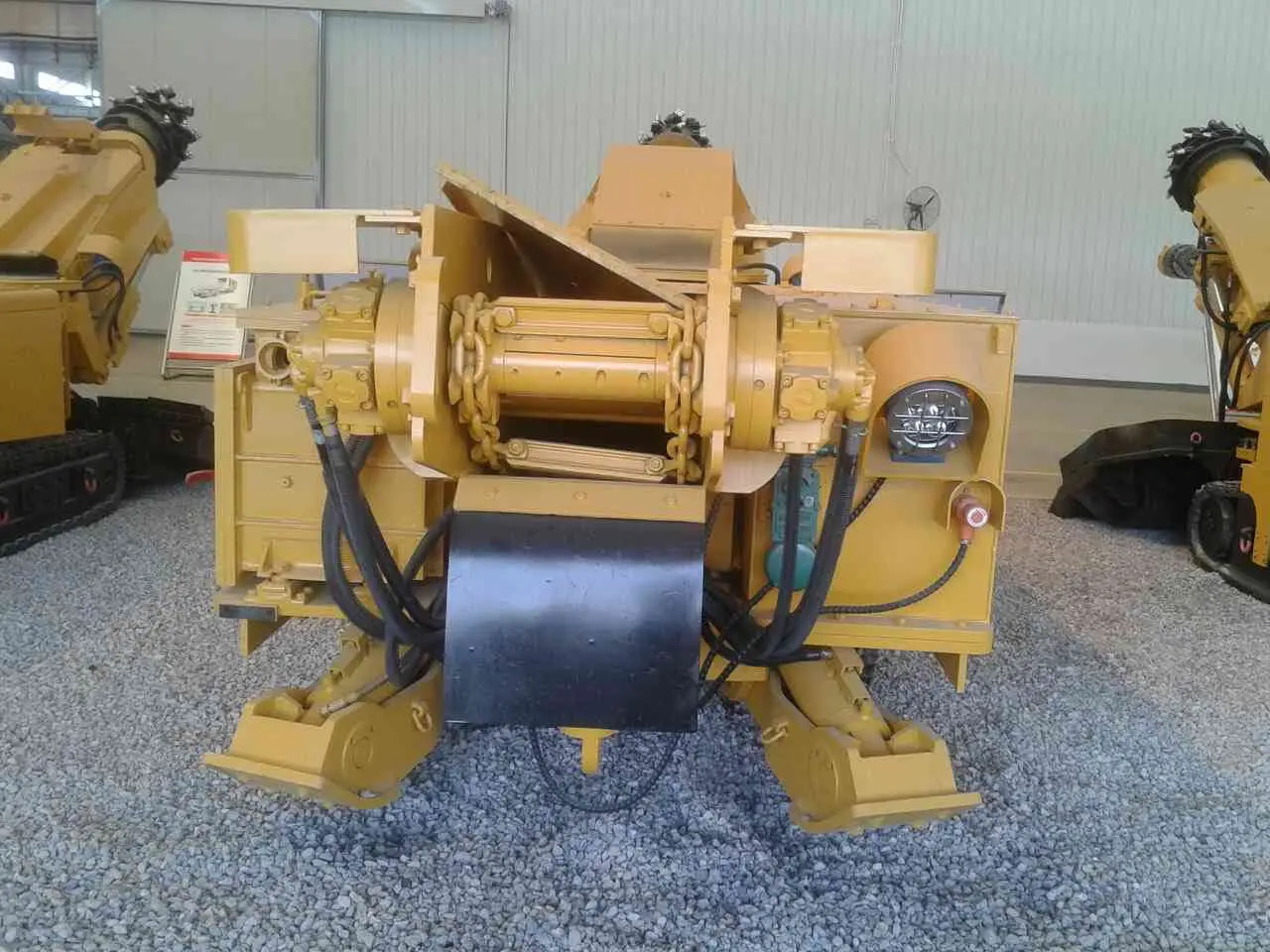

Convert valve for roof bolter

Optional

Dimensions of max part

mm

3130*1400*1600

Weight of  the max. part

kg

6000

Hole depth

m

100

Hole dia.

mm

133-94

Our new type roadheader with exploration function makes a new recordOn August 27th, good news came from China Coal Xinji Energy Co., Ltd., which used the new type roadheader with exploration function independently developed by our company to carry out rock tunneling operations, and achieved an average daily progress of 10.2 meters and a maximum monthly 325 meters. The good results have set a new record for the mine.

The  EBZ200T combines two functions of advanced detection and roadway excavation, which can effectively avoid geological disasters such as gas outburst and water seepage.

Before the tunneling operation, the geophysical excavation machine carried out advanced detection, detecting the drilling depth to 100 meters, the open dia. Is 133mm and the end dia. Is 94mm, from the opening to the completion of the hole, and the use time was about 12 hours, and its drilling speed, drilling quality and equipment stability were better than The crawler tunnel rig. The most important is it reduced the staggering time and space of the two kinds of equipment, improved the comprehensive tunneling efficiency, and won the praise of the users.

Trade Information
  • FOB Port
  • Xingang
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Supply Ability
  • 1000 Set Per Year
  • Delivery Time
  • 15 Days
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • MA
