EBZ160M-2 Alpine bolter miner

Send Inquiry
Product Code : 84303900
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price
  • USD500000-600000 USD ($)/Set
Product Description

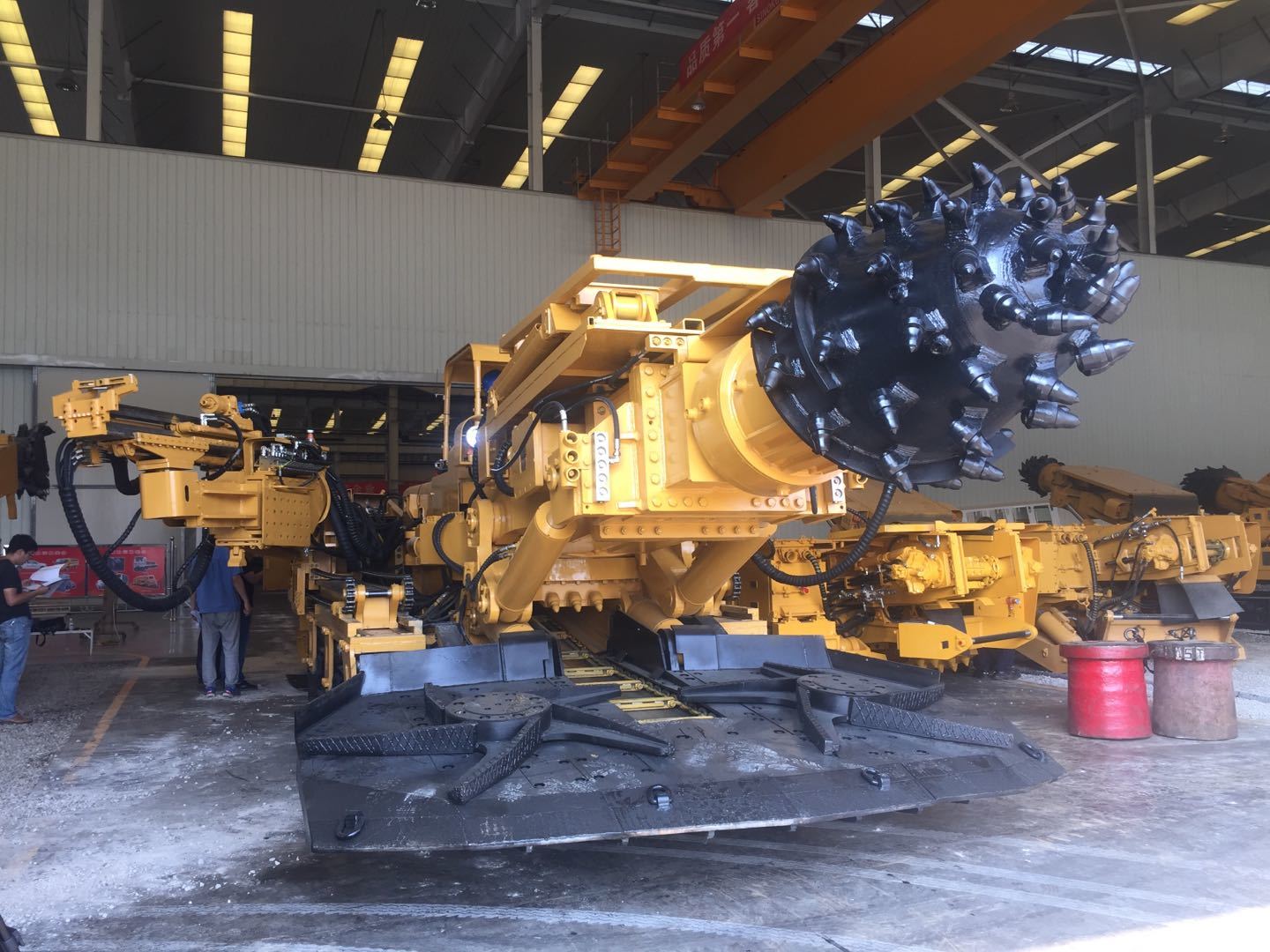

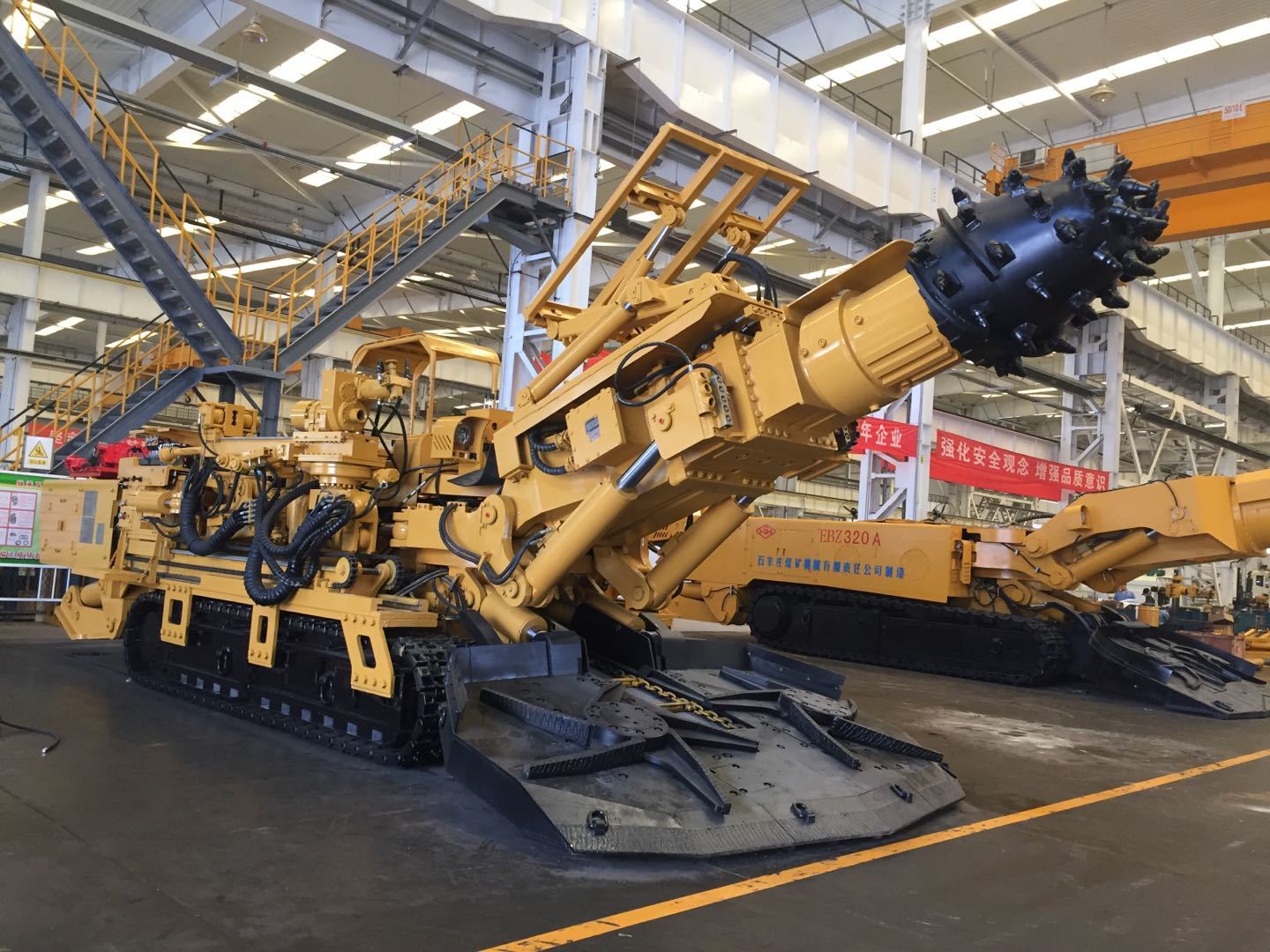

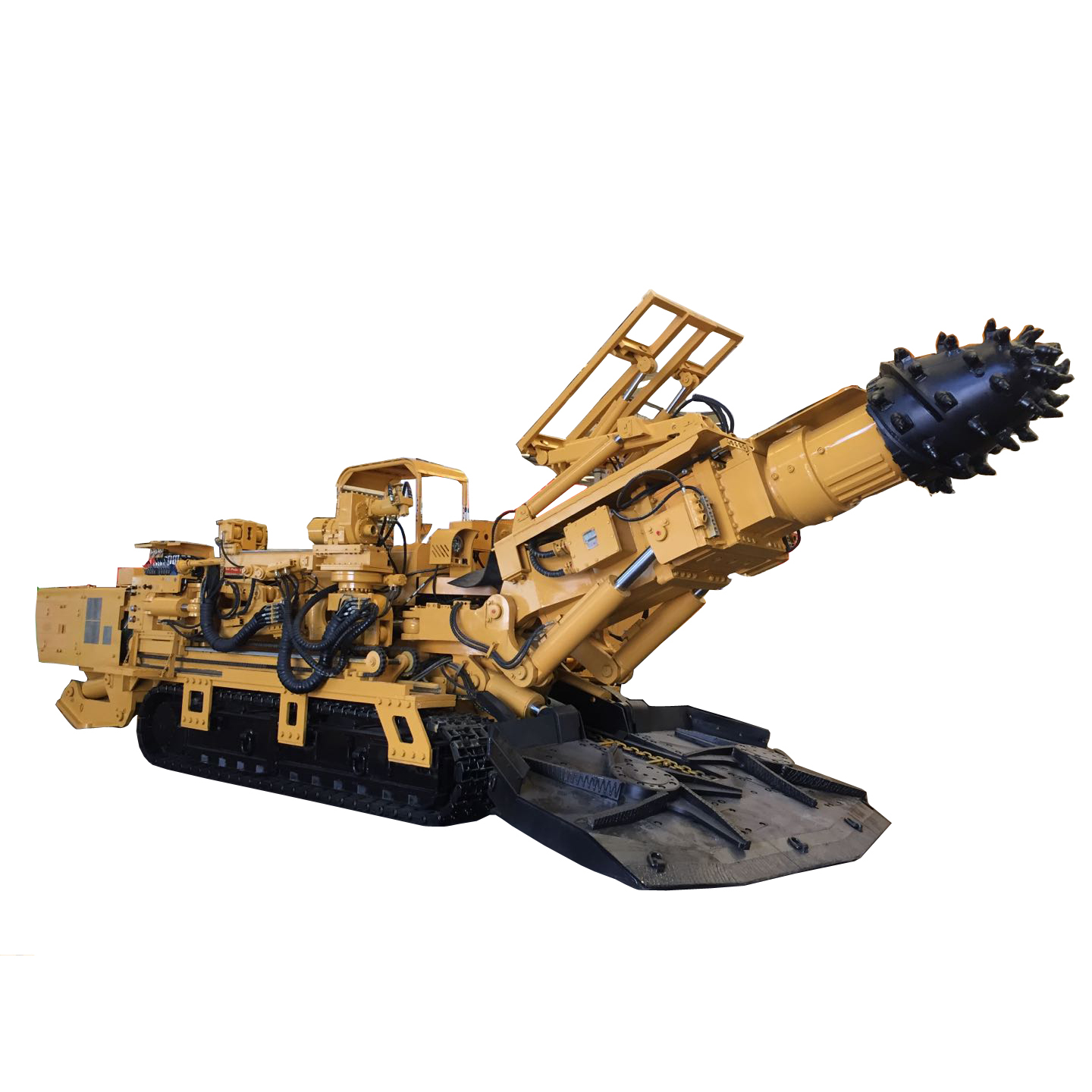

Multi-function Road header- Alpine Bolter Miner

Introduction

The alpine bolter miner is a comprehensive equipment integrating cutting, loading, walking and bolting operations. It is used for roadway tunneling operations and has the function of bolting, thus realizing the rapid tunneling in coal roadway, semi-coal rock roadway and soft rock

Integrating the tunneling and bolting functions,the two functions do not interfere with each other, and the mechanized drilling of the anchors (cables) hole at different heights and angles in the roadway can be realized, which greatly reduce the supporting time and improves the tunneling efficiency.

Remote control and manual control

Equipped with temporary support function,increases the safety of the workers.

Specification

Model

EBZ160M-2

EBZ200M-2

Weight (t)

63

71

Overall dimensions (m)

11.175x2.7x 2.48

11.78x 84 x .5

Cutting range (m)

5.24x4.82

6.63x5.2

Applicable tensile  (MPa)

80

80

Applicable gradient

±18

±18

Width of Apron(m)

3.2

3.6

Undercutting depth (mm)

335

425

Loading capacity (m3/h)

220

240

Travelling speed (m)

6.5

0-6.5

Ground pressure (MPa)

0.14

0.135

Cutting power  (kW)

160/100

200/110

Power pack  (kW)

100

100

System pressure (MPa)

22

22

Voltage (V)

660/1140

1140

Rated torque of drilling rig (N.m)

300

300

Rated rpm of drilling rig (rpm)

500

500

Hole dia.(mm)

28

28

Drilling depth (m)

0- 10

0- 10

Drilling pipe (mm)

b

B19

Propel stroke of drilling rig (mm)

2400

2400

Max. propelling force of drilling rig (kN)

10

10

Drilling boom No.(pc)

2

2

Applicable roadway section  (mm)

(46) x2.6 4)

(4x(3x4)

Dimension of Max. part(mm)

3223x1190x1379

3130x1400x1600

Weight of Max. part (kg)

5400

6000


Shijiazhuang Coal Mining Machinery Co., Ltd.
