Product Description

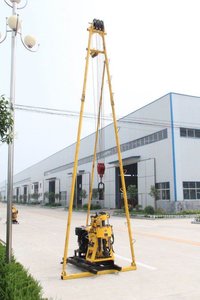

With an aim to be a pioneer in our domain, we are engaged in manufacturing and supplying Hydraulic Rotary Core Drilling Rig. This one is widely utilized for forming deep observation boreholes. It consists of a powered rotary cutting head on the end of a shaft that is driven into the ground as it rotates. Thus, it requires lubrication for keeping the cutting head cool. Moreover, materials recovered from open-hole drilling are mixed with drilling lubricants. Further, Hydraulic Rotary Core Drilling Rig is suitable for rapid drilling to enable core recovery at a greater depth or for installation of monitoring wells.

Technical specification

XY-1 technical parameter

Drillign depth

100m

Max. open hole dia.

250mm

End hole dia.

75 46mm

Drill rod caliber

50 42mm

Drilling angle

90 degree-75 degree

Drilling weight (not include power)

500kg

Unity machine dimensions

1.64×1.03×1.44m

Spindle

Spindle speed

142,285,570r/min

Spindle stroke

450mm

Upward displacement speed of idling vertical spindle

0.05m/s

Downward displacement speed of idling verticl spindle

0.067m/s

Spindle pull-down max

15KN

Spindle lifting capacity max.

25kN

Winch

Max. lifting capacity

10kN

Wirerope dia.

9.3mm

Winch roll capacity

27m

Mud pump

Type

Horizontal single cylinder twin-action

Dispacement

95 77L/min

Maximum pressure

1.2Mpa

Work pressure

0.7Mpa

Suction hose dia.

32mm

Outlet hose dia.

25mm

Power unit

Diesel engine

Model ZS1100A2, 12.1kW, 2200r/min

Electric motor

Y132M-4, 7.5kw, 1440r/min
